E-Studio 2500AC
E-Studio 2500AC

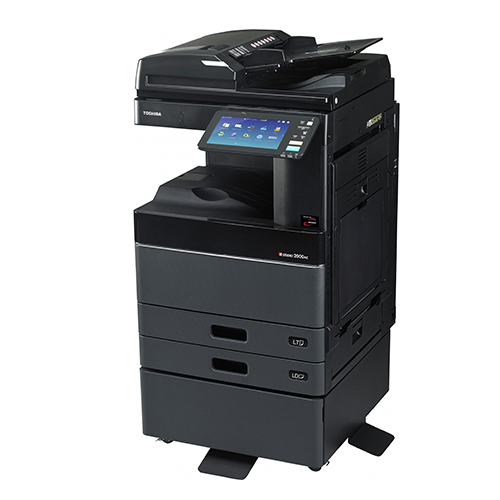

The e-STUDIO2000AC/2500C comprises an A3/LD-size colour MFP series that offers print speeds of 20/25 ppm. For small and medium businesses and workgroups that demand color along with a small footprint, Toshiba has answered the call. The series is packed with industry-leading technology and innovations designed to help workgroups connect, integrate and simplify.

Main Specifications

  • Copy System: Indirect Electrostatic Photographic Method/OPC/LED Printing/ Heat Roller Fusing
  • Display: 9” Color WVGA Touch Screen Tilting Display
  • Copy Speed: 20/25 PPM (LT)
  • First Copy Out: Color: 9.5/9.5 Monochrome: 7.1/7.1
  • Warm-Up Time: Approx. 21 Seconds
  • Copy Resolution: 600 x 600 dpi
  • Stack Feed Bypass: ST-R to LD, Envelope
  • Multiple Copying: Up to 999 Copies
  • Paper Capacity: Standard 350 Sheets/Max. 2,900 Sheets
  • Original Feed: Optional 100-Sheet RADF
  • Scan Speed & Weights: RADF Scan: Up to 73 IPM (Monochrome or Color), Simplex: 9.3-41.8 lb Bond, Duplex: 13.3-41.8 lb Bond
  • Max. Original Size: LD
  • Paper Feed Sizes: Drawer 1: 250 Sheets-ST-R to LD Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to LD Opt. Paper Feed Unit: 550 Sheets-ST-R to LD Opt. 550-Sheet Paper Feed Pedestal-ST-R to LD Opt. 550-Sheet Drawer for PFP -ST-R to LD Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only
  • Paper Weights: Standard: 250 Sheets-16 lb Bond-90 lb Index Stack Feed Bypass: 100 Sheets-16 lb Bond-110 lb Index Opt. Paper Feed Unit: 550 Sheets-16 lb Bond-90 lb Index Opt. 550-Sheet Paper Feed Pedestal: 16 lb Bond-90 lb Index Opt. 550-Sheet Drawer for PFP: 16 lb Bond-90 lb Index Opt. Envelope Cassette for PFP: 16 lb Bond-lb Index Opt. 2,000-Sheet Tandem LCF (Pedestal Type): 17-28 lb Bond
  • Duplex: Standard Automatic Duplex Unit: 16 lb Bond-90 lb Index
  • Reproduction Ratio: 25% to 400%
  • Max Duty Cycle: Max. 67.2K Month (e-STUDIO 2000AC) Max. 84K Month (e-STUDIO 2500AC)
  • Weight: Approx. 126 lb
  • Approx. Dimensions: 22.6” (W) x 23” (D) x 26.1” (H) CMYK Toner Yield CMY: 33.6K, BK: 38.4K @ 5% Power Source 120 Volts, 50/60 Hz, 12 Amps
  • Power Consumption: Maximum 1.5kW (120V)
  • CPU: Intel Atom™ 1.33GHz (Dual-Core)
  • Memory: 4GB
  • Hard Disk Drive: 320GB Self-Encrypting Drive FIPS 140-2 Validated

e-BRIDGE Next Print Specifications

  • Print Speed: 20/25 Pages Per Minute (LT)
  • Print Resolution: 600 x 600 dpi (5 bit) 600 x 1,200 dpi (1 bit) PS3 Only
  • Operating Systems: Windows® Vista, Windows Server® 2008/R2, Windows® 7, 8, 8.1, 10, Windows Server® 2012/R2, Macintosh® (Mac OS × 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux®
  • Network Protocols: TCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments, EtherTalk® for Macintosh Environments
  • Printing Protocols: SMB, LPR/LPD, IPP (Ver.1.1) w/Authentication, AppleTalk PAP or EtherTalkTM, Port 9100 (bi-directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP Print Drivers Windows® Vista SP2 (32-bit, 64-bit), Windows Server® 2008 SP2 (32-bit, 64-bit), Windows Server® 2008 R2 SP1 (64-bit), Windows® 7 SP1 (32-bit, 64-bit), Windows® 8/8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit, 64-bit), Mac OS® X 10.6.8, 10.7.4, 10.8, 10.9, 10.10
  • Interface: RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n, Wireless LAN, Optional Bluetooth
  • Wireless Device: AirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android (Available via Apple App Store or Google Play)
  • Device Management: TopAccess, EFMS 6.2 (e-BRIDGE Fleet Management Software)
  • Account Control: Up to 10,000 users or 1,000 Departments Supports User Authentication (on Device), Login Name/Password (via Windows domain) or Login Name/ Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function
  • Accessibility Features: Tilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen Timeout and Audible Beep Message Alerts
  • Security Features: User Authentication, On-Board Data Scramble Function, SCEP, Disable e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC Address Filtering (10 Sets), Network Service Control, Network Port Control, SMB Packet Signing, SSL (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/IEC15408 EAL3+)*, IEEE2600.1, IEEE802.1X, Digital Signature for Client Utilities, Password Policy, Password Lock, Password Expiration, Self Testing, Job Access Control, Log Access Control for Job Log, Security Stamp * Compliant with IEEE2600.1 in High security mode.
  • Environmental Stds.: Energy Star (V2.0), EPEAT Gold, Blue Angel Mark (RAL UZ-171, MFD), Canadian ECP, Californian Proposition 65, Nordic Swan, RoHS
  • Certification: WHQL (Windows 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell, Citrix, SAP

Scan Specifications

  • Scan Speed: RADF Scan: Up to 73 IPM (Monochrome or Color)
  • Scan Modes: Standard: Full Color, Auto Color, Monochrome, Grayscale
  • Scan Resolution: 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi
  • File Formats: Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)
  • Image Compression: Color/Grayscale: JPEG (High, Middle, Low)

Facsimile Specifications

  • Compatibility: Super G3
  • Data Compression: MH/MR/MMR/JBIG
  • Transmission Speed: Approx. 3 Seconds Per Page
  • Fax Modem Speed: Up to 33.6 Kbps
  • Memory Transmission: 100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job
  • Scan Speed: 0.7 Seconds Per Page, Maximum 73 IPM

e-Filing Specifications

  • Operation Method: Color Touch Screen Control Panel or Client PC
  • Number of Boxes: 1 Public Box, 200 Private User Boxes
  • Capacity of Boxes: 100 Folders Per Box, 400 Doc

Accessories (Options)

Platen & Document Feeder Options

  • RADF:MR3031
  • Platen Cover: KA5005PC

Additional Paper Options

  • Paper Feed Pedestal: KD1058
  • Paper Feed Unit: MY1047
  • Drawer Module: MY1048
  • Envelope Cassette Option: MY1049
  • Large Capacity Feeder: KD1059LT

Finishing Options

  • Inner Finisher: MJ1042
  • Saddle-Stitch Finisher: MJ1110
  • Hole Punch Unit (For MJ1042): MJ6011
  • Hole Punch Unit (For MJ1110): MJ6105
  • Bridge Kit: KN5005
  • Job Separator: MJ5014

Connectivity/Security Options

  • FAX Unit/2nd Line for FAX Unit: GD1370
  • Wireless LAN/Bluetooth: GN4020
  • Bluetooth Keyboard: GR9000
  • Accessory Tray: GR1250
  • Panel 10-Key Option: GR1260
  • Card Reader Holder: GR1290
  • Meta Scan Enabler: GS1010
  • IPsec Enabler: GP1080
  • Unicode Font Enabler: GS1007
  • Embedded OCR Enabler
    • Single License GS1080
    • Five Licenses GS1085
  • Multi-Station Print Enabler
    • Single License GS1090
    • Five Licenses GS1095
  • USB Hub Option: GR1270
  • Advanced Scanning (ReRite): GB1280V8
  • SharePoint Connector: GB1440
  • Exchange Connector: GB1450
  • Google Docs Connector: GB1540

Miscellaneous Options

  • Stand: STAND5005
  • Accessible Arm: KK2550
  • Work Tray: KK5005
  • Manual Pocket: KK5008
  • Harness Kit for Coin Controller: GQ1280
