PRODUCT > MS631DW
MS631dw
MS631dw
Lexmark

Qty:


  • Monochrome Laser
  • Duplex (2-sided) Printing: Integrated Duplex
  • Print Speed: Up to 50 ppm
  • Recommended Monthly Page Volume: 2,000 - 20,000 pages

General Specs

Part #38S0400Print Technology
  • Monochrome Laser
Function
  • Printing
  • Trusted Platform Module (TPM)1
Workgroup Size
  • Medium Workgroup
Display

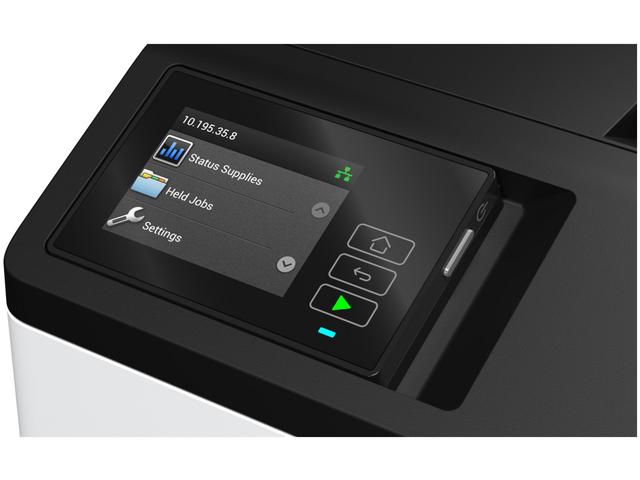

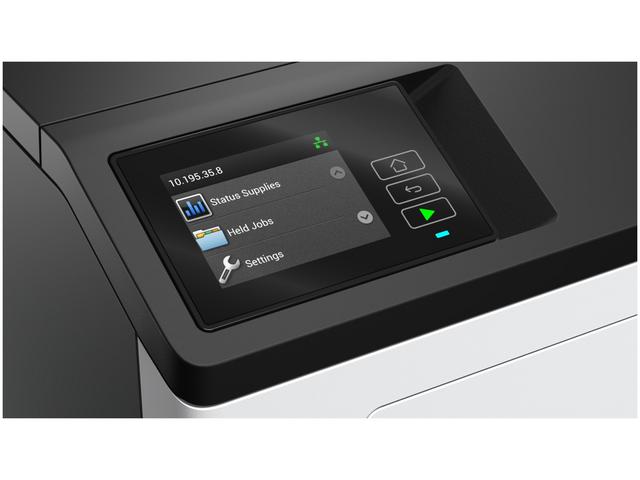

  • 2.8 inch (7.2 cm) Color touch screen
Media Sizes Supported
  • A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Hagaki Card, Letter, B5 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope
Included Paper Handling
  • 100-Sheet Multipurpose Feeder, 250-Sheet Output Bin, Integrated Duplex, 550-Sheet Input
Standard Ports
  • Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Specification Hi-Speed Certified (Type B)
Size (in. - H x W x D)
  • 12.1 x 15.7 x 15.3 in.
Weight (lb.)
  • 33 lb.
Packaged Size (in. - H x W x D)
  • 16.6 x 18.5 x 16.9 in.
Packaged Weight (lb.)
  • 37.8 lb.

Printing

Print Speed
  • Up to:
  • Black: 50 ppm2 (Letter)
Print Speed Duplex
  • Up to:
  • Black: 24 spm2 (Letter)
Time to First Page
  • As fast as:
  • Black: 6 seconds
Print Resolution
  • Black: 1200 x 1200 dpi, 1200 IQ (1200 x 600 dpi)
Duplex
  • 2-sided:
  • Integrated Duplex
Printable Area
  • 0.16 inches of the top, bottom, right and left edges (within)

Paper Handling

Media Types Supported
  • Paper Labels, Card Stock, Plain Paper, Envelopes, Refer to the Paper & Specialty Media Guide
Number of Paper Inputs
  • Standard: 2
  • Maximum: 5
Paper Input Capacity
  • Standard: 650 pages 20 lb or 75 gsm bond
  • Maximum: 2300 pages 20 lb or 75 gsm bond
  • 650 pages 20 lb or 75 gsm bond
Paper Output Capacity
  • Up to:
  • Standard: 250 pages 20 lb or 75 gsm bond
  • Maximum: 250 pages 20 lb or 75 gsm bond
Paper Weight Range Supported
  • lb.:
  • 16 - 32 lb. (Standard Tray)
  • 16 - 58 lb. (Multipurpose Feeder)
Optional Paper Handling
  • 550-Sheet Lockable Tray, 250-Sheet Tray, 550-Sheet Tray
Recommended Monthly Page Volume
  • 2,000 - 20,000 pages3
Maximum Monthly Duty Cycle
  • Up to:
  • 175,000 pages per month4

Cartridges & Imaging

Laser Cartridge Yields
  • up to:
  • 31,0005-page Black Cartridge
Imaging Unit Estimated Yield
  • Up to:
  • 75,000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
Cartridge(s) Shipping with Product
  • 5,0005-page Return Program Toner Cartridge5
Replacement Cartridges:
  • Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.

Hardware

Processor Speed
  • Dual Core, 1 GHz
Memory
  • Standard: 512 MB
  • Maximum: 512 MB
Hard Disk
  • Intelligent Storage Drive available
Printer Languages
  • Standard:
  • PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Fonts and Symbol Sets
  • 2 PCL 5/6 bitmap fonts, 94 scalable PCL 5/6 fonts, 163 scalable PostScript fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display
  • Yes

Connectivity

Ethernet Network
  • Yes
Wireless
  • Yes
Network Protocol Support
  • IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP
Network Printing Methods
  • FTP, Pull Printing, Thin Print, Microsoft Web Services WSD, Telnet, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
Network Management Protocols
  • DHCP, APIPA (AutoIP), mDNS, BOOTP, WINS, DDNS, DNS, ARP
Network Security
  • SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown
Optional Local Ports
  • Internal 1284-B Bidirectional Parallel, Internal RS-232C serial
Optional Network Ports
  • MarkNet N8230 Fiber Ethernet Print Server
Wireless Network
  • WEP Encryption (64- and 128-bit key), 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, WPA2™ - Personal

Supported Operating Systems

Microsoft Windows Operating Systems Supported
  • Windows Server 2008 x64 running Terminal Services, Windows 11, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows Server 2022, Windows Server 2008, Windows 8 x64, Windows Server 2012, Windows Server 2003 x64, Windows Server 2003, Windows Server 2012 R2, Windows Server 2003 x64 running Terminal Services, Windows Server 2003 running Terminal Services, Windows 10, Windows 8.1, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows 2000 Server running Terminal Services, Windows Server 2008 R2, Windows 7 x64, Windows Server 2016, Windows XP x64, Windows Me, Windows XP, Windows Vista x64, Windows 2000, Windows Server 2019, Windows NT (4.00/4.00 Server), Windows Vista, Windows 98 2nd Edition, Windows 7
Apple Operating Systems Supported
  • Support is provided through AirPrint and AirScan only
Android Operating System Support
  • Support is provided through Mopria® Print Service and Mopria Scan.
Linux Operating Systems Supported
  • OpenSUSE 15.1, Red Hat Linux 8.3, Debian 9.4, Red Hat Linux 7.9, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 12 SP5, Fedora 33, Fedora 32, Debian 10, Ubuntu 20.04, Ubuntu 18.04 LTS, OpenSUSE 15.2
Citrix MetaFrame
  • Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64, Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 3.0, 4.0, Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5, Microsoft Windows Server 2008 R2 Standard Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2008 R2 Enterprise Edition running Citrix XenApp 6.0, 6.5, Microsoft Windows 2000 Server running Terminal Services with Citrix MetaFrame Presentation Server 4.0, Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2008 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5
Novell Operating Systems Supported
  • Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3, Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64)
Other Operating Systems Supported
  • Virtually any platform supporting TCP/IP

Electrical & Operation

ENERGY STAR
  • Yes
ENERGY STAR Typical Electricity Consumption
  • TEC:
  • 0.6 kilowatt-hours per week
Noise Level
  • Operating:
  • 14 dBA (Idle)
  • 56 dBA (Print)
Duplex Print Noise Level
  • Operating:
  • 55 dBA
Average Power
  • 0.1 watts (Hibernate Mode)
  • 0.9 watts (Sleep Mode)
  • 7.1 watts (Ready Mode)
  • 657 watts (Printing)
Specified Operating Environment
  • Temperature: 10 to 32°C (50 to 90°F)
  • Altitude: 0 - 2896 Meters (9,500 Feet)
  • Humidity: 15 to 80% Relative Humidity
Product Certifications
  • ENERGY STAR, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62368-1 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55032 Class B, UL), EFTA (CE), KCC, CCC, CECP, CEL, A-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, ISO 532B, ECMA-370, TED, SII, TER, Mopria Certified, Blue Angel / DE-UZ 219
UNSPSC Code
  • 43212105
Harmonized Tariff Code
  • 8443.32.1010
Country of Origin
  • Rest of World - PRC, North America & TAA Compliant - Mexico
License/Agreement Terms
  • Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details.

Warranties

Limited Warranty
  • See Statement of Limited Warranty:
  • 1 Year Advanced Exchange
